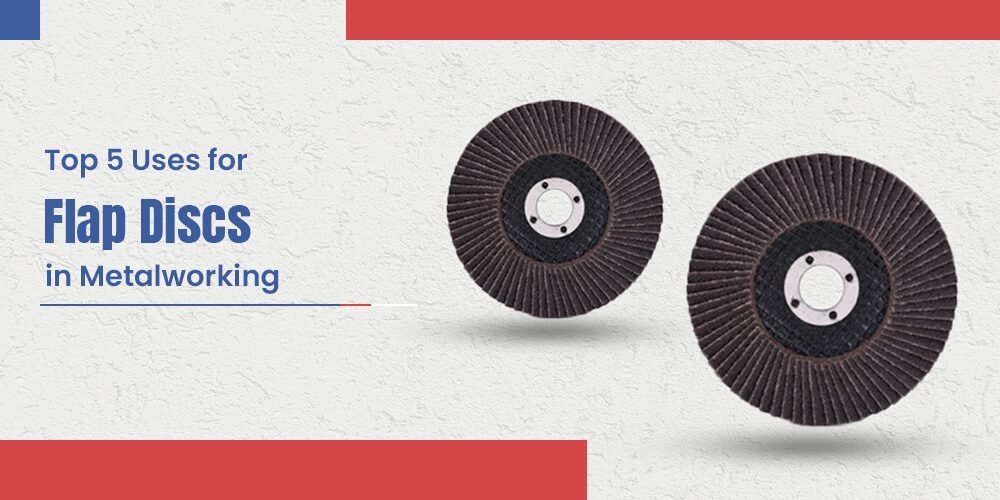

Top 5 Uses for Flap Discs in Metalworking

In the world of metalworking, where precision and efficiency are paramount, the right tools can make all the difference. While many abrasive options exist, few offer the versatility and effectiveness of the humble flap disc. If you’ve spent any time grinding, shaping or finishing metal, chances are you’ve encountered these layered wonders. But are you truly leveraging their full potential?

Here at Supra Industries, based in Pune, we’ve seen firsthand how our high-quality sta™ and LUKAS flap discs revolutionize workshops across India. From small fabrication shops to large industrial setups, flap discs have become indispensable. Let’s dive into the top five ways these incredible tools are used to achieve superior results in metalworking.

1. Efficient Weld Blending and Smoothing

One of the most common and vital applications for flap discs is blending and smoothing welds. After the sparks fly and the molten metal cools, you’re often left with a raised, uneven bead that needs to be effortlessly integrated with the surrounding material. This is where flap discs truly shine.

Unlike traditional grinding wheels, which can aggressively remove too much material and leave deep gouges, flap discs offer a more controlled and forgiving approach. Their overlapping abrasive flaps wear down gradually, exposing fresh abrasive material and providing a consistent cutting action. This makes them ideal for:

• Knocking down high spots: Quickly reducing the height of the weld bead without excessive material removal.
• Blending the weld into the parent material: Creating a smooth transition that looks like a single, continuous piece of metal.
• Removing spatter: Effortlessly cleaning up welding spatter without damaging the surrounding surface.

The flexibility of the flaps also allows the disc to conform slightly to irregular contours, leading to a more uniform and aesthetically pleasing finish. For precision work, especially in stainless steel fabrication, a quality flap disc is crucial for achieving that “invisible weld” look.

2. Aggressive Stock Removal and Grinding

While we just highlighted their blending capabilities, don’t underestimate a flap disc’s power for aggressive stock removal. When you need to take down a significant amount of material quickly, especially on larger workpieces, flap discs can often outperform traditional grinding wheels.

This is particularly true for applications where heat buildup is a concern. The layered design of flap discs allows for better airflow and heat dissipation compared to solid grinding wheels. This means less heat distortion on your workpiece and a more comfortable experience for the operator.

Types of flap discs, such as those made with Zirconia Oxide or Ceramic grains, are specifically engineered for heavy-duty grinding. These grains are tougher and sharper, maintaining their cutting edge for longer durations even under high pressure. Whether you’re chamfering thick plates, preparing edges for welding or removing excess material from castings, a robust flap disc can tackle the job with impressive speed and efficiency.

3. Deburring and Edge Breaking

Sharp edges and burrs are an inevitable byproduct of many metal fabrication processes, from cutting and punching to machining. These sharp imperfections are not only aesthetically unpleasing but also pose safety hazards and can hinder subsequent operations like painting or assembly. Flap discs offer an excellent solution for deburring and edge breaking.

Their abrasive flaps can effectively shear off burrs and round over sharp edges, leaving behind a smooth, safe surface. This is particularly valuable for:

• Sheet metal fabrication: Quickly deburring cut edges on steel, aluminum and other metals.
• Machined parts: Removing machining burrs from drilled holes, milled slots and turned components.
• General fabrication: Softening sharp corners on structural steel and framework.

Using a flap disc for deburring is often faster and more consistent than manual filing or scraping, especially on longer edges or complex shapes. The key is to select a disc with the appropriate grit and flexibility to achieve the desired edge radius without over-grinding.

4. Surface Preparation and Cleaning

Before painting, coating or even re-welding, proper surface preparation is critical. Any rust, scale, old paint or contaminants on the metal surface can compromise the adhesion and longevity of subsequent finishes. Flap discs are highly effective tools for thoroughly cleaning and preparing metal surfaces.

The continuous exposure of fresh abrasive on a flap disc makes it excellent for:

• Removing rust and corrosion: Quickly stripping away oxidized layers to expose clean metal.
• Descaling: Breaking through a tough mill scale on hot-rolled steel.
• Stripping old paint or coatings: Efficiently taking off old layers without clogging.
• Cleaning up slag and silicon islands: Leftovers from welding processes.

For these applications, choosing the right flap disc is crucial. For lighter cleaning and surface blending, aluminum oxide or non-woven flap discs might be ideal. For heavier scale removal, tougher ceramic or zirconia flap discs will provide the necessary aggression. The end result is a clean, profiled surface that’s ready for its next step.

5. Finishing and Blending for Uniform Appearance

Beyond just removing material, flap discs are excellent for achieving a uniform and aesthetically pleasing finish. This is particularly important in industries where the final appearance matters, such as automotive, architectural metalwork and appliance manufacturing.

When you need to blend different grain patterns, remove scratches from previous operations or create a consistent satin finish, a flap disc can be your go-to tool. Their ability to produce a refined finish while also offering good material removal makes them highly versatile.

Consider these scenarios:

• Grain blending: Matching the existing grain pattern on stainless steel panels after repairs.
• Removing minor scratches: Lightly sanding away surface imperfections to restore a clean look.
• Creating a brushed finish: Using finer grit flap discs to achieve a consistent brushed appearance on metal.

For these tasks, finer grit flap discs, sometimes even non-woven versions, are used. The goal is to create a consistent scratch pattern that gives the metal a uniform and professional look, rather than just raw material.

Conclusion

From the heart of metal fabrication in Pune, we at Supra Industries understand the diverse needs of modern metalworking. The flap disc, a seemingly simple abrasive tool, proves time and again to be a versatile powerhouse. Whether you’re knocking down welds, removing heavy stock, meticulously deburring, preparing surfaces for coating or aiming for that perfect uniform finish, there’s a flap disc designed to help you achieve it.

Investing in high-quality flap discs from sta™ or LUKAS, available through our shop, isn’t just about buying an abrasive; it’s about investing in efficiency, precision and the superior finish that sets your work apart. Explore our range and discover how the right flap disc can transform your metalworking projects.
